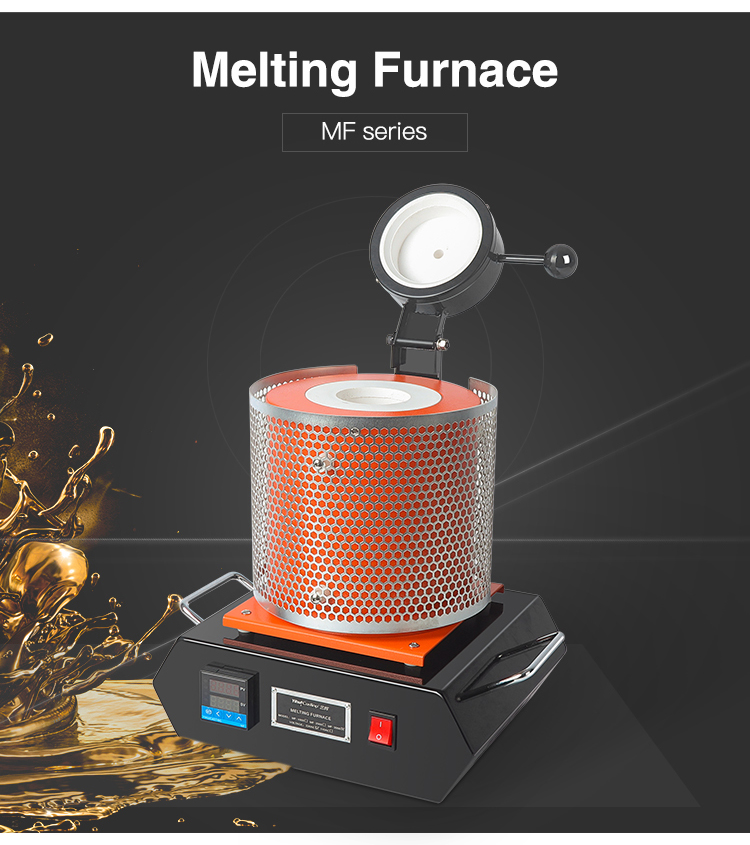

jewelry melting furnace
Z.M.MF.03000B / R
Quantity

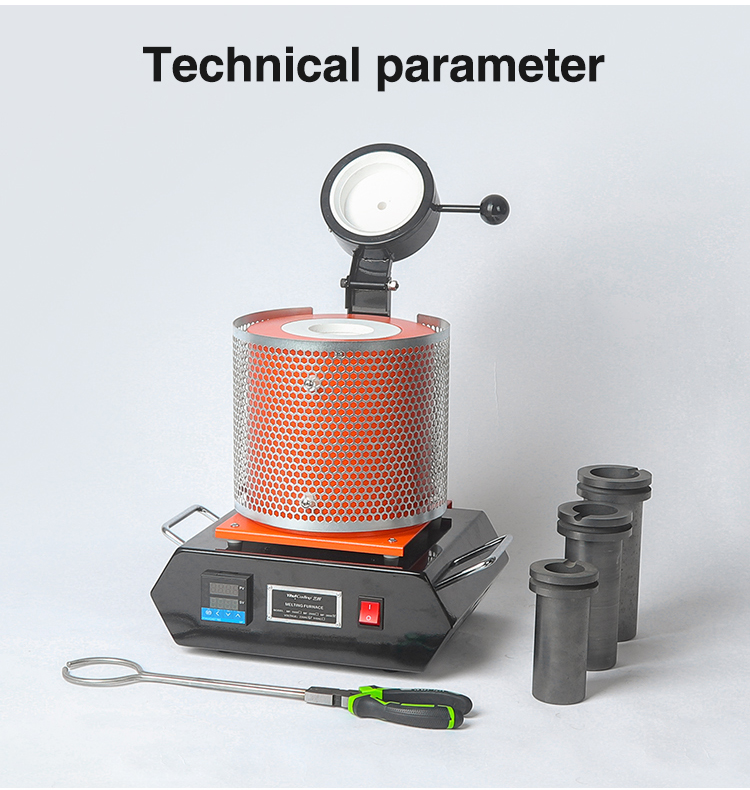

Melting Furnace Technical Parameters
Detailed description

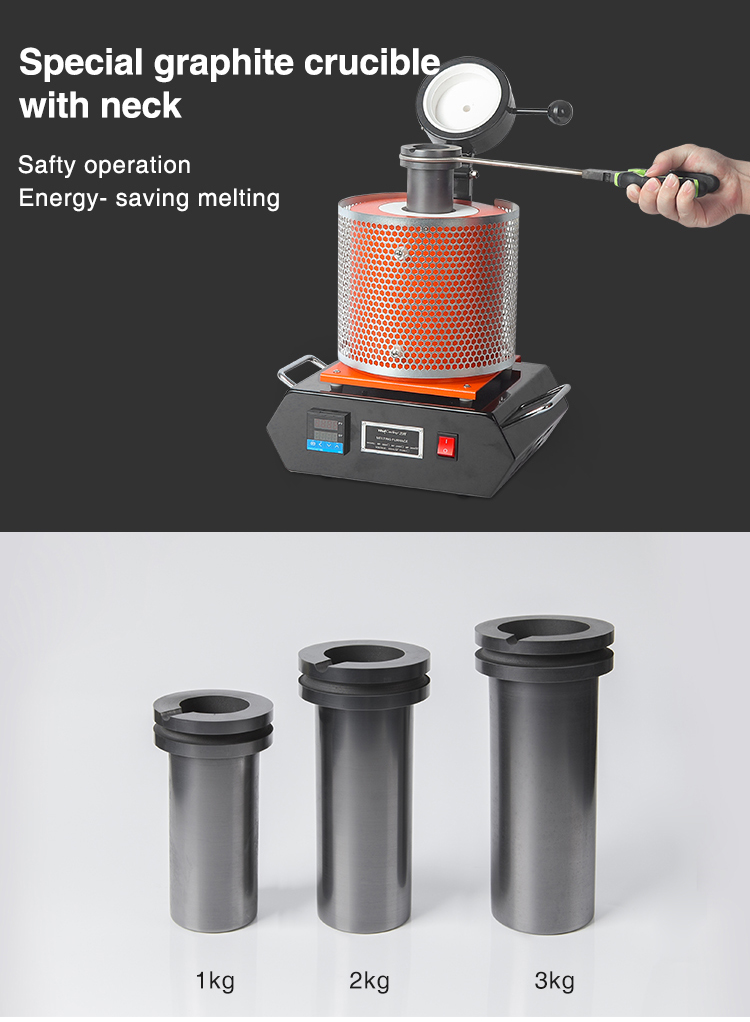

Graphite melting crucible with neck
| Description | 1 kg melting furnace (MF-1000) | 2 kg melting furnace (MF-2000) | 3 kg melting furnace (MF-3000) | 5 kg melting furnace (MF-5000) |
| Model | Z.M.MF.01000B / R | Z.M.MF.02000B / R | Z.M.MF.03000B / R | Z.M.MF.05000B / R |
| Power input | 1750 W | 1750 W | 2050 W | 2800 W |
| Power supply | 110V 50/60 Hz, 14A 220V 50/60Hz, 7A | 110V 50/60 Hz, 14A 220V 50/60Hz, 7A | 110V 50/60 Hz, 14A 220V 50/60Hz, 7A | 110V 50/60 Hz, 14A 220V 50/60Hz, 7A |
| Measurement accuracy | ±0.5% FS | ±0.5% FS | ±0.5% FS | ±0.5% FS |
| Working environment | 0-50℃, 30-85% RH | 0-50℃, 30-85% RH | 0-50℃, 30-85% RH | 0-50℃, 30-85% RH |
| Net size (L×W×H) | 35×25×38 (cm) | 35×25×38 (cm) | 35×25×38 (cm) | 35×29.5×43.5 (cm) |
| Packing size (L×W×H) | 38.5×38.5×44 (cm) | 38.5×38.5×44 (cm) | 38.5×38.5×44 (cm) | 38.5×38.5×44 (cm) |
| Net weight | 10.5 kg | 10.5 kg | 10.5 kg | 18.5 kg |
| Packing weight | 12 kg | 10.5 kg | 10.5 kg | 21 kg |
Detailed description
| Product name | Portable mini melting furnace for jewelry |
| Keyword | Mini melting furnace |
| Type | High Efficiency |
| Capacity | 3kg |
| Feature | Professional |
| Color | Orange,black,red |
| Technology | New |
| Application | Melting Industries |
| Usage | Melting gold silver |
| Condition | New |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty of core components | 1 Year |
| Core Components | Pressure vessel |
| Warranty | 1 Year |
| After-sales Service Provided | Video technical support |
| Applicable Industries | Energy & Mining |
| Place of Origin | Guangdong China |
| Machine Type | Melting |
| Brand Name | Yihui |
| Certification | CE |

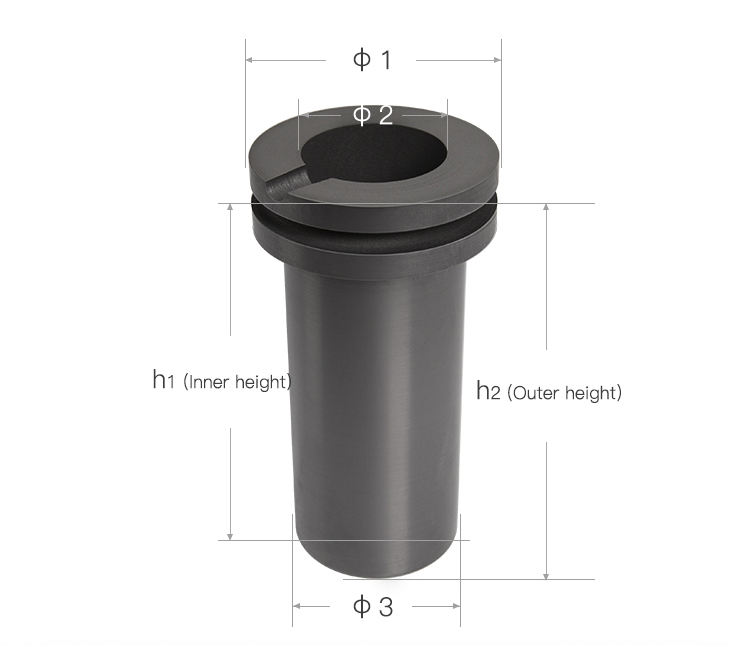

Graphite melting crucible with neck
| Model | Description | Φ1 | Φ2 | Φ3 | H1 | H2 | Weight | Remark |
| G.GM.1000SH | 1kg graphite crucble | Φ65 | Φ38 | Φ50 | 125 | 115 | 245g | Capaticy 1kg gold |
| G.GM.2000SH | 2kg graphite crucble | Φ72 | Φ44 | Φ55 | 155 | 140 | 330g | Capaticy 2kg gold |
| G.GM.3000SH | 3kg graphite crucble | Φ75 | Φ50 | Φ60 | 170 | 150 | 360g | Capaticy 3kg gold |
