Gold Melting Furnace for Jewelry Industrytal melting furnace
Z.M.MF.01000B-2
FOB
Mini melting furance of maximum 1150C which can melt gold/silver/copper/brass/aluminium
Quantity
Gold Melting Furnace for Jewelry Industry

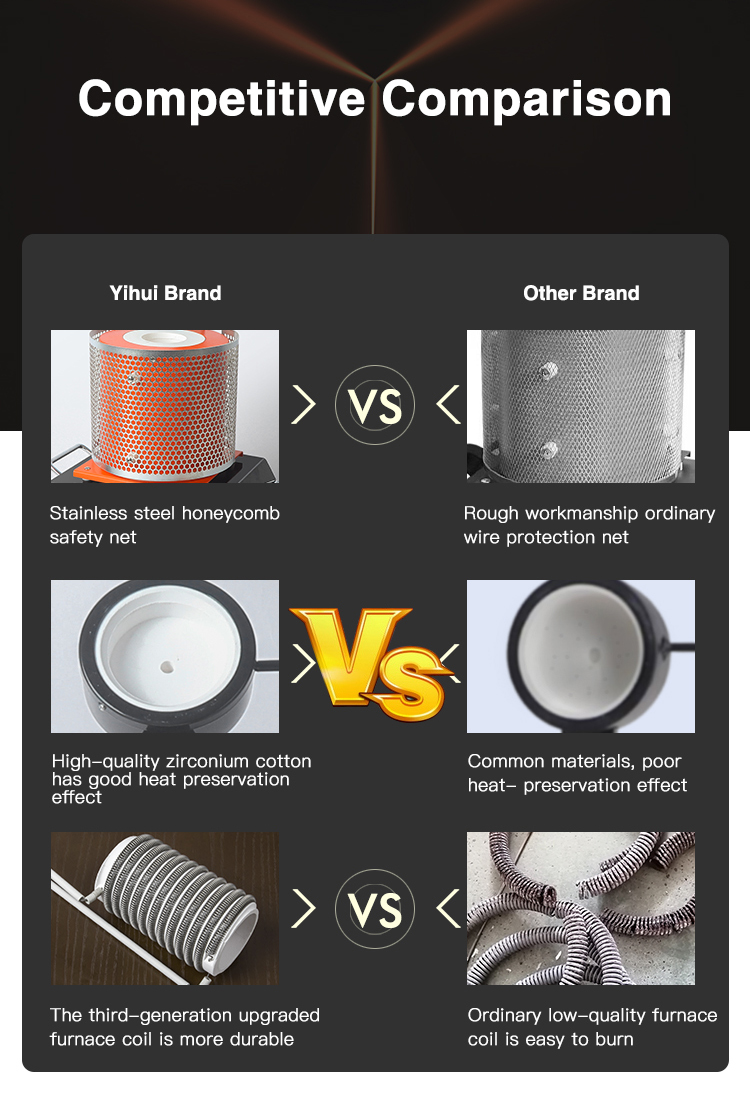

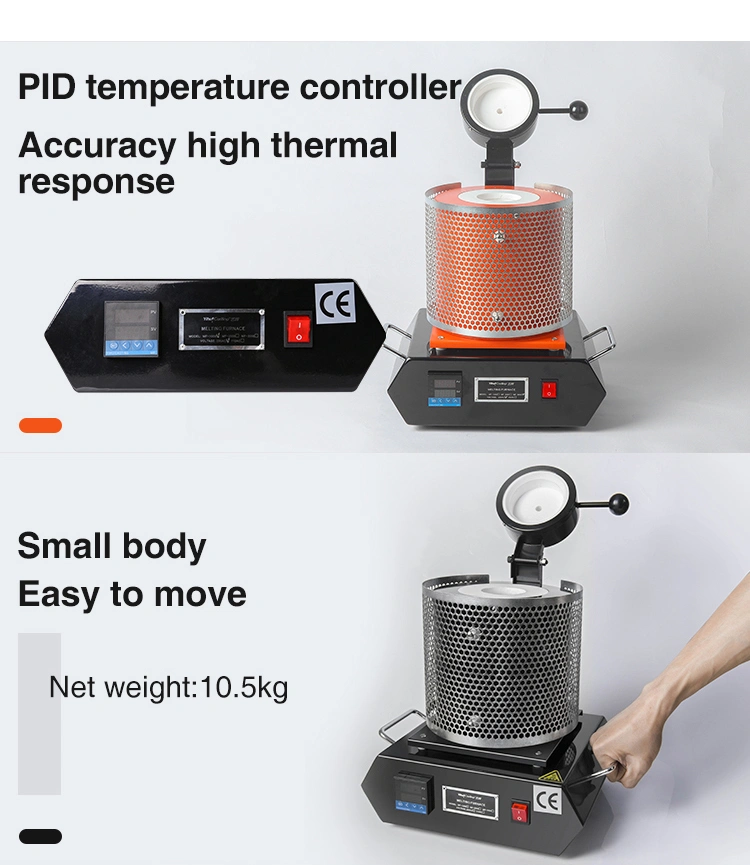

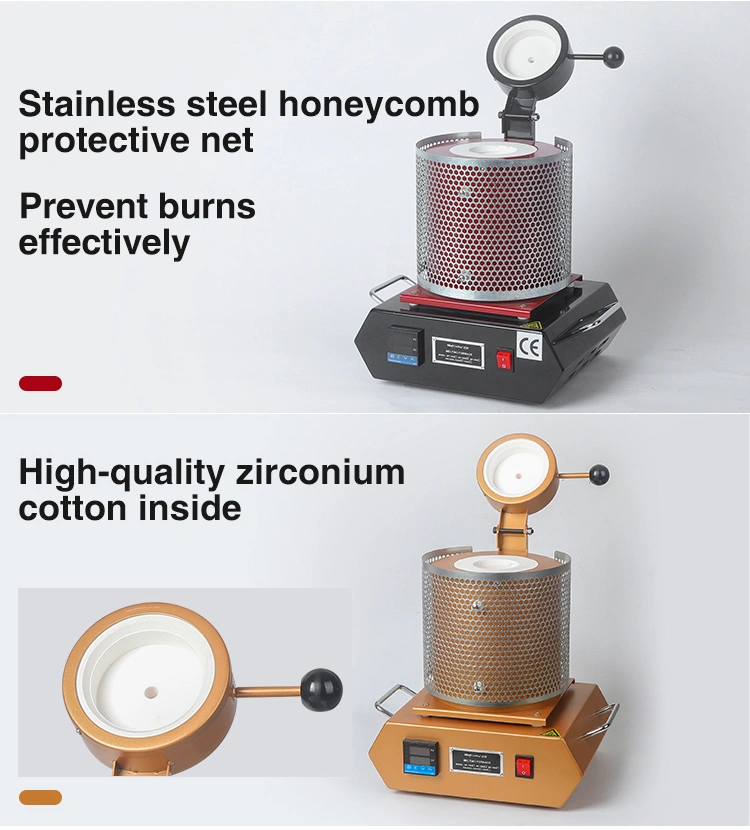

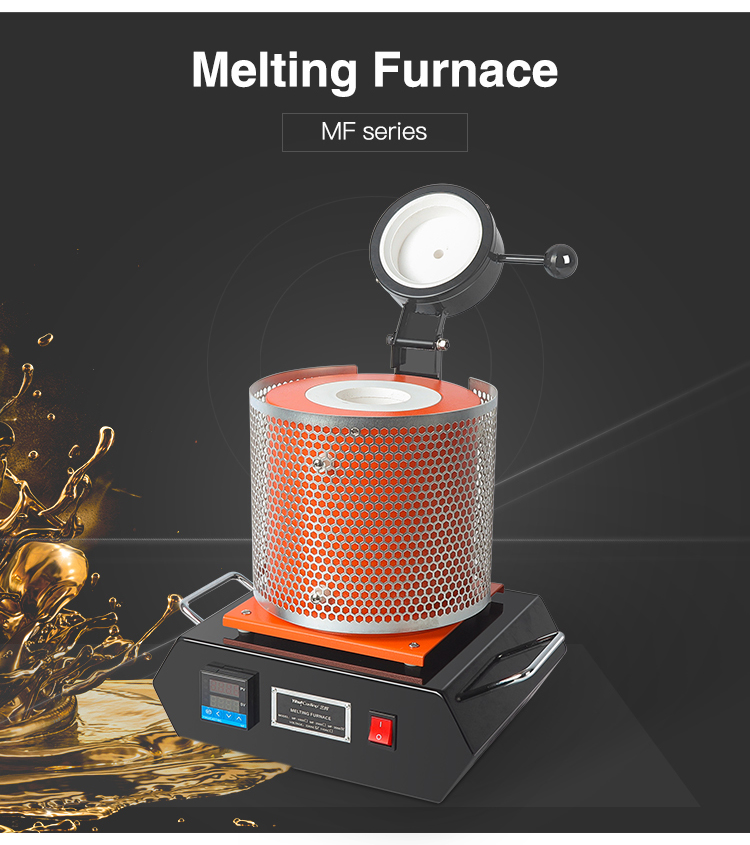

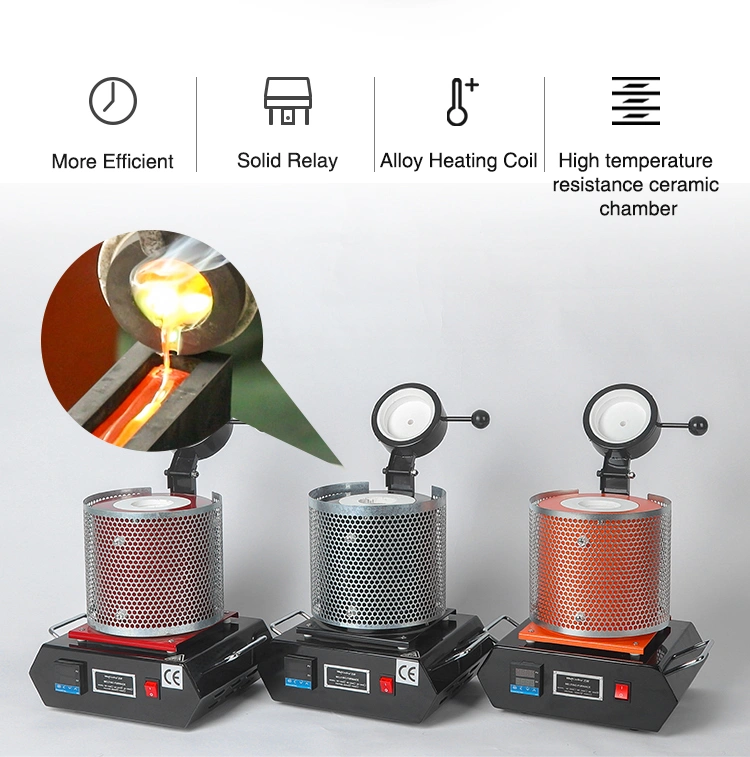

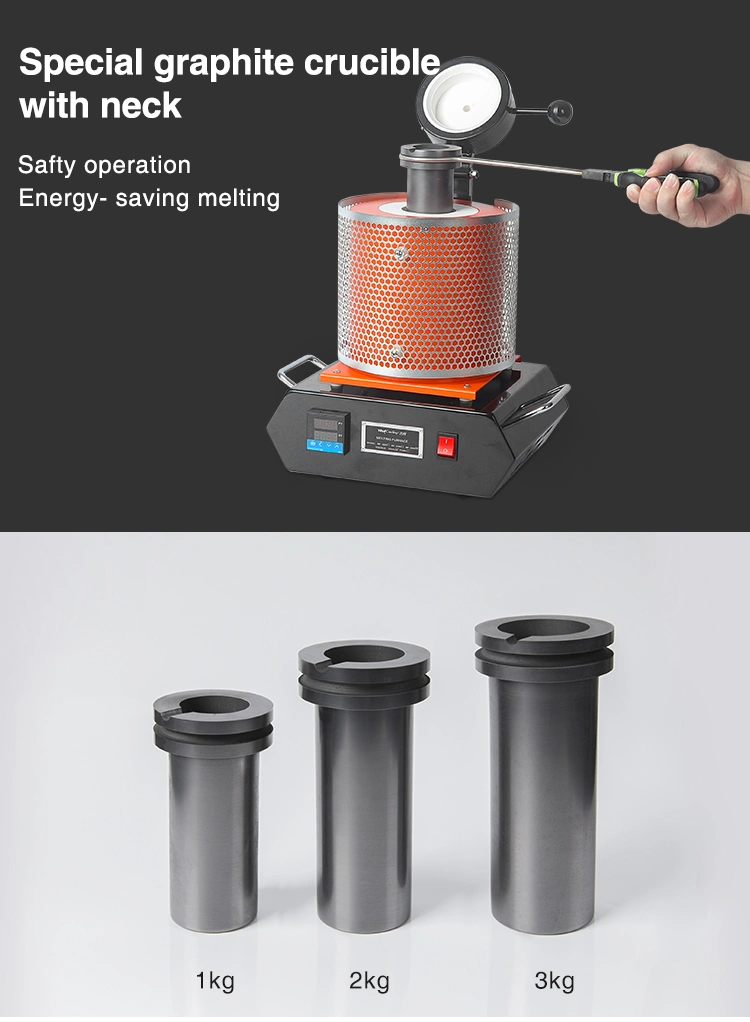

MF series mini melting furnace applys SSR controller, alloy made heating element,high temp proof ceramic melting chamber ,high aluminium protection and other advanced & quality components , in addition to unique design, all consolidate furnace's durabilityand working efficiency over current markets furnaces..

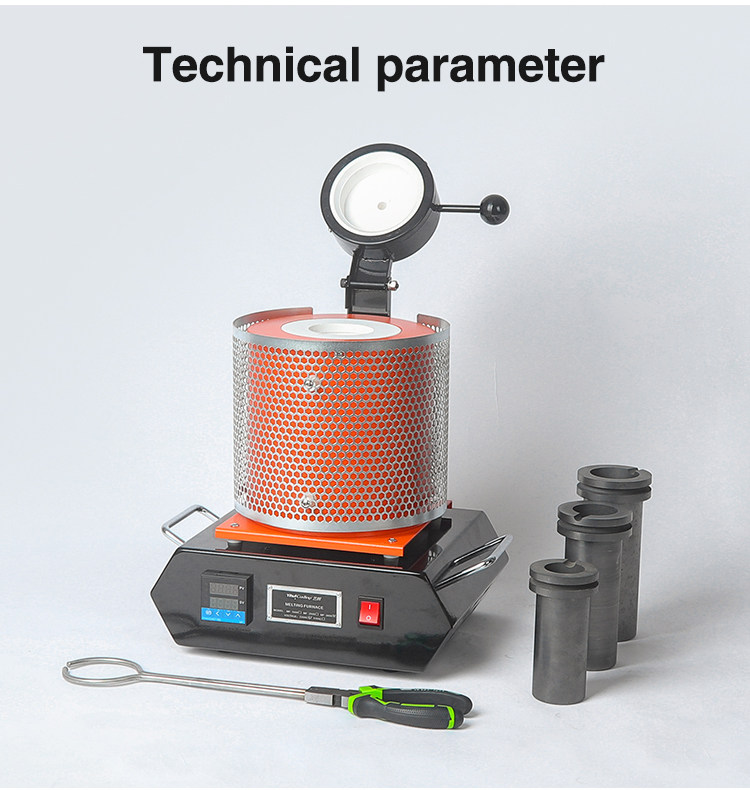

Techinical Prameter of 1kilo to 5 kilo Mini Furnace
| Description | 1 kg melting furnace (MF-1000) | 2 kg melting furnace (MF-2000) | 3 kg melting furnace (MF-3000) | 5 kg melting furnace (MF-5000) |
| Model | Z.M.MF.01000B/ R -2 | Z.M.MF.02000B / R-2 | Z.M.MF.03000B / R-2 | Z.M.MF.05000B / R-2 |
| Power input | 1750 W | 1750 W | 2050 W | 2800 W |
| Power supply | 110V 50/60 Hz, 14A 220V 50/60Hz, 7A | 110V 50/60 Hz, 14A 220V 50/60Hz, 7A | 110V 50/60 Hz, 14A 220V 50/60Hz, 7A | 110V 50/60 Hz, 14A 220V 50/60Hz, 7A |
| Measurement accuracy | ±0.5% FS | ±0.5% FS | ±0.5% FS | ±0.5% FS |
| Working environment | 0-50℃, 30-85% RH | 0-50℃, 30-85% RH | 0-50℃, 30-85% RH | 0-50℃, 30-85% RH |
| Net size (L×W×H) | 35×25×38 (cm) | 35×25×38 (cm) | 35×25×38 (cm) | 35×29.5×43.5 (cm) |
| Packing size (L×W×H) | 38.5×38.5×44 (cm) | 38.5×38.5×44 (cm) | 38.5×38.5×44 (cm) | 38.5×38.5×44 (cm) |
| Net weight | 10.5 kg | 10.5 kg | 10.5 kg | 18.5 kg |
| Packing weight | 12 kg | 10.5 kg | 10.5 kg | 21 kg |
FAQ of Yihui Electrical Melting Furnace
| Q1 | What is maximum melting temp of this furnace? |
| A1 | Maximum it can reach 1150 C |
| Q2 | What metal can I melt with your electrical resistance melting furnace? |
| A2 | In our furnace you can melt gold, silver, copper, brass, aluminium |
| A3 | How many kg of aluminium can I melt with your 5kg furnace |
| Q3 | 5kg capacity is for gold, gold density is 19.3g/cm, while aluminium density is 2.7g/cm, so in 5kg furnace you can melt about 0.7kg aluminium, you use same way to calculate capacity of other metal |
| Q4 | Can I melt iron with this furnace |
| A4 | No, because to melt iron need minimum 1550 C, you can choose our pt furnace or high frequency induction furnace |
...
.
.
.
